Surface Mounted
Dana

Surface Mounted
Dana

Product Overview

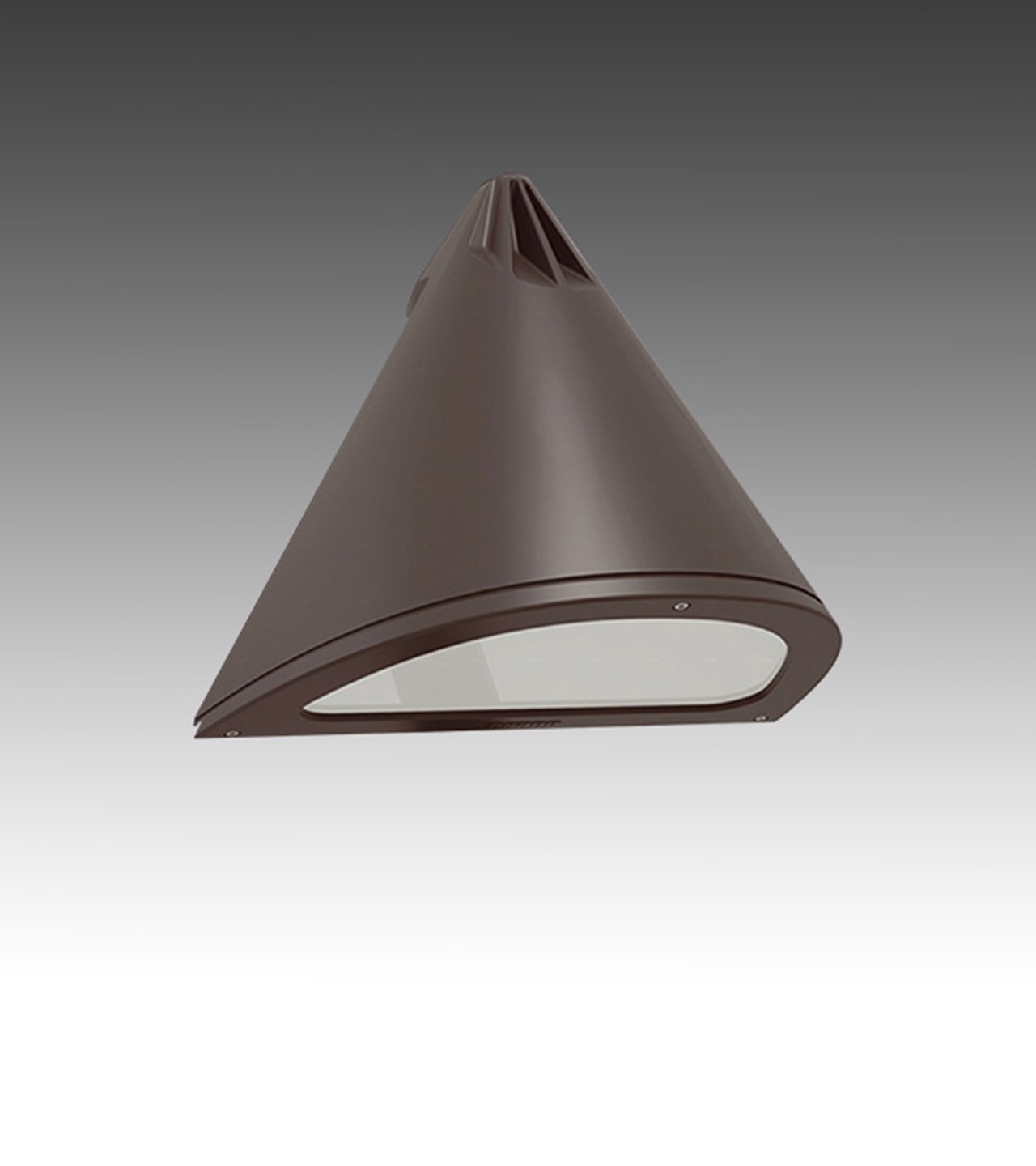

The Dana IP65 rated external luminaire is manufactured from die cast aluminium, the impact resistant tempered glass is retained via a front frame fitted with safety retaining springs for easy maintenance.

The luminaire design helps to produce excellent photometric results and achieves the requirements with regard to Dark Sky compliance. Both LED and compact fluorescent lamp sources are available within the range, the luminaire is also available with various integral emergency options.

There are two robust textured finishes available, sandblasted silver and graphite helping to make the luminaire suitable for most commercial external applications.

Dana

Key features

IP65 suitable for external environments

Impact rating of IK07

Nominal life-time of 100,000 h (L70/ B20)

Emergency BLF = 155lm

Weight = 3.1 kg

Options
For sandblasted silver suffix /SLV
For graphite suffix /GRA
For self-contained 3hr emergency suffix /EMR
For self-contained 3hr self-test emergency suffix /MON
For self-contained 3hr DALI addressable emergency suffix /EMP

i.e. DANA/1120/84/GRA/EMR =
Dana, LED, 4000K, graphite c/w 3hr self-contained emergency.

Downloads

Document Title Format Download Single Add to zip
Datasheet PDF
Installation Guide PDF
High Resolution Image JPEG

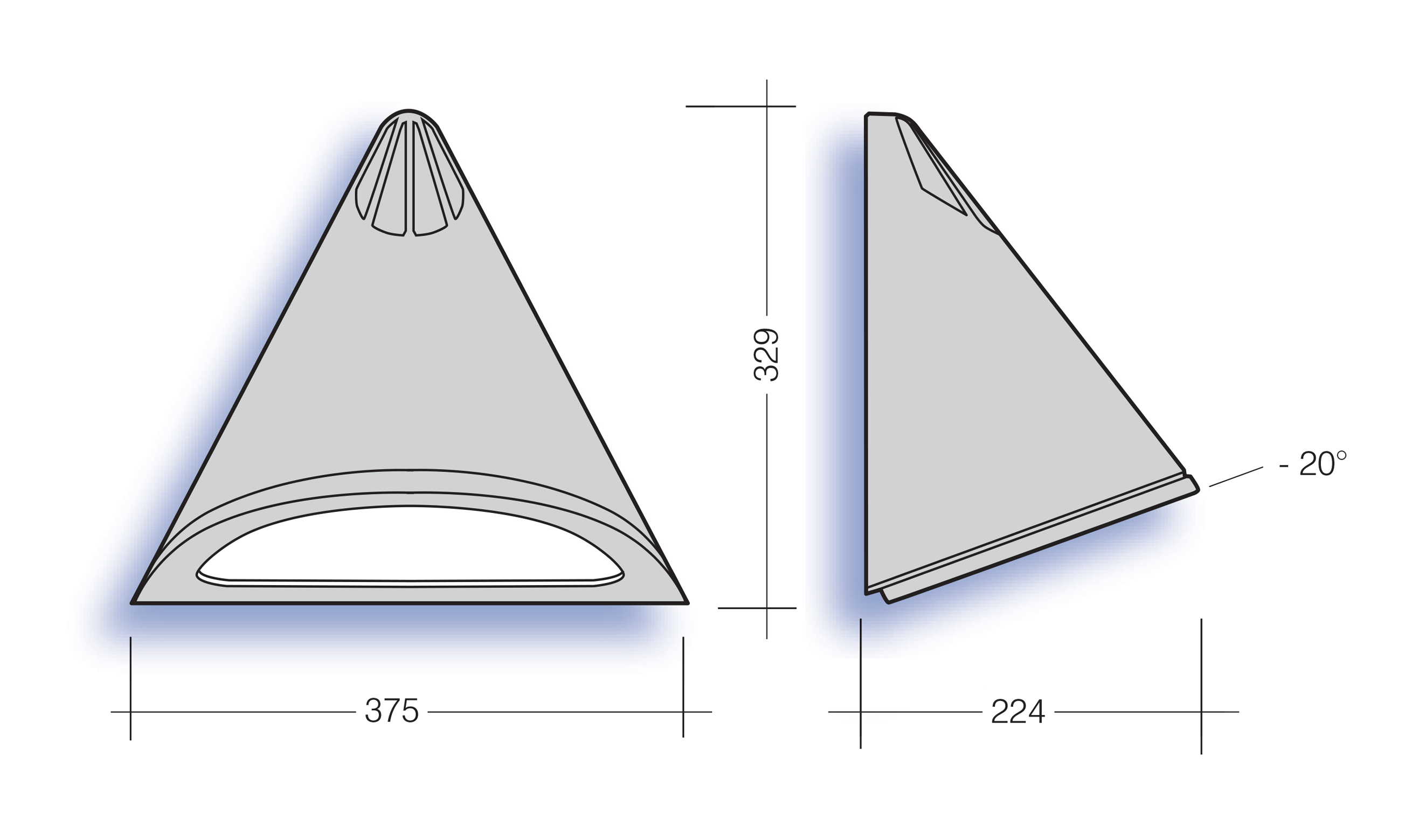

Dimensions JPEG
Eulumdat Files LDT
REVIT Files Available Upon Request
Part code Output (lm) Power (W) Efficacy (lm/W) Colour temp (K) Length (mm) Width (mm) Height (mm) Weight (kg)
DA/1120/84 1119 9 124 4000 375 224 329 3.1
